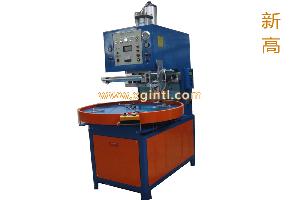

Model: XG-8000AT
APET green plastic welding machine Features:
◆ For APET / PETG / GAG / etc EPA materials welding, cutting technology,
PVC / PET plastic packaging, toothbrush packaging and other products packaging;
◆ Sync fuse function that while completing welding after cutting (function keys optional);
◆ adjustable cutting pressure 15 tons, can be customized, output strong and stable;
◆ mesa auto-rotate, 3-6 stations to choose from, work more efficiently;
◆ Precision splitter devices, precise positioning, error ± 10um;
◆ high sensitivity spark arrester, to effectively prevent damage to the mold
◆ Using hands automatically reclaimer, more efficient (optional) ◆ German high-frequency oscillations square box, to contribute more , more stable. ◆ Power range 5 ~ 35KW , maximum pressure 40 tons of hydraulic. APET green plastic welding machine Usage : ◆ both fuse cardboard and plastic (toothbrush packaging) ◆ same time fuse automotive synthetic leather chairs, sun visor, door armrests, etc. ◆footwear accessories, trademarks, watches, belts, CD bag, mobile phone sets, Computer sets, etc. ◆toothbrush / dental floss, plastic elevator packaging, paper card plastic synchronous fusing ◆synthetic fabric embossed leather trimming ◆ variety of high-frequency welding materials and fuse ◆APET green plastic welding machine Advantages: ◆ paper card with suction Meanwhile plastic welding and cutting, you can save complicated processes. ◆ on the bit more convenient and accurate.Products are stable, trimming smooth, feel very good. Technical Specifications
Model |
XG-5000AT
|
XG-8000AT
|
High Cycle Output
|
5000W
|
8000W
|
Input Voltage
|
AC380v, 3 ∮, three-phase five-wire
|
Input Power
|
8KVA
|
15KVA
|
Oscillation frequency
|
27.12MHz
|
Rectifiers
|
Silicon diode
|
Oscillating tube
|
7T85RB
|
7T69RB
|
Sparkproof thyristor spark tube
|
NL-5557
|
Compression method
|
Empty direct-acting hydraulic
|
Gap of Electrodes
|
250mm
|
Upper Fixing dimensions
|
300mmx450mm
|
400mmx550mm
|
Fixing dimensions
|
350mmx500mm
|
500mmx600mm
|
Thermostat
|
30-300 ℃ adjustable
|
Dimensions
|
1200mmx1000mmx2300mm
|
1300mmx1000mmx2300mm
|
Net weight
|
800KG 1000KG
|
|
