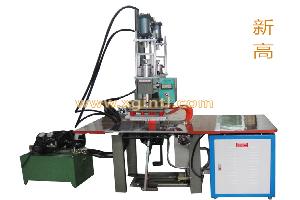

XG-5KW Double Hydraulic High Frequency Machine

Clicks:Updated:2013-06-20【Print】【Close】

  • Details
  • Wholesale
  • Shipping
  • Transactions
  • Contact

Machine features:

  1. Square slider design, power is particularly strong, safe and efficient operation.
  2. Using high sensitivity spark arrester, sparking extent of the damage to a minimum when the mold, reduce product scrap rate.
  3. Improved quality accessories full assembly.
  4. Way by foot pressure fuel pressurized, the pressure is stable.
  5. International industrial band 27.12MHz.
  6. For pressure, on the bit difficult series of products, saving time and effort, disposable and easy to operate.
  7. Optional heating and other auxiliary devices.

Uses:
manufacturing toys, raincoats, footwear, leather card, leather handbags, warm handbags, pencil boxes with mesh gauze production of PVC products, embossing, punching.

Technical Specifications:

Model

XG-5000TA

XG-8000TA

XG-10000TA

High Frequency Power

5000W

8000W

10000W

Supply Voltage

220V/380V 50/60HZ

Frequency

27.12MHZ

Input Power

8KVA

15KVA

18KVA

Rectifiers

Silicon diode

Oscillating tube

 7T85RB

7T69RB

E3069

Maximum pressure

 350KG

450KG

 500KG

Maximum electrode spacing

160-200mm

Size of active horn

60mm

On the electrode size

120x290mm

120x290mm

200x300mm

Table size

 350x700mm

350x700mm

400x800mm

Temperature range

30-300 ℃

Time adjustment

 1-10s

Compression method

Foot

Capacity

3000x4000tims/8h

Net weight

 330KG

380KG

430KG

Dimensions

1720x1100x1500mm

1800x1200x1600mm

2000x1500x1700mm
