　　I. Overview:

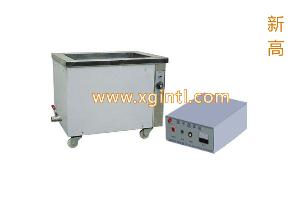

　　XG-C1012F ultrasonic cleaning equipment. Mainly imported high-quality parts and imported SUS304 # stainless steel production and processing, production. While using the most advanced ultrasonic frequency line, Fm-3 FM technology, integrated design, the power module output, stable, reliable, low repair rate. Also designed theundervoltage lock forehead, overcurrent shutdown protection, three micro-power soft start, automatic frequency tracking, LED power and frequency display. With clean, good quality, high working efficiency advantages.Equipment consists of ultrasonic cylinder, ultrasonic vibration plate, heating, temperature control system, electrical control system.

　　Second, the main parameters:

　　an ultrasonic frequency: 28KHz Ultrasonic power: 12PCS * 50W

　　2 Tank Size: L370 * B280 * H330mm

　　3 outer tank size: L530 * B440 * H570mm

　　Third, the main material composition and functions:

　　1, the ultrasonic generator:

　?、?ultrasound transducer imported "HS" vibration head.

　?、?using advanced ultrasonic generator frequency modulation circuit, the latest IC circuit technology; specific modules, with a soft start function.

　?、?The bottom mounted vibrator 12PCS.

　　2, piping systems:

　?、?wash tank with a set of draining devices.

　?、?discharge line of SUS304 stainless steel tube.

　　3, the rack parts:

　?、?machine chassis with stainless steel 38 * 38 square pass welding.

　　② outer sealing plate SUS304δ1.0mm plate.

　　4 cylinder parts:

　?、?gt; SUS304δ2.0mm cylinder adopts imported stainless steel plate.

　　② vibrating surface using SUS304δ2.5mm stainless steel.

　　5, the electrical control:

　?、?with separate ultrasonic control box, control panel with FM switch, LED display switch.

　　② a fail-safe protection.

　?、?electrical control components are made ??of high quality imported components.

　　Fourth, the ultrasonic vibration force testing standards: Tin Park Paper 10 seconds to breakdown.
