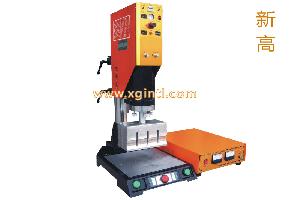

Machine features:
-
Whole machine is designed to prevent the back straight shaft concentric to improve welding accuracy.
-
Trimming machine has a limit device, so that the soldering is uniform, improve product yield.
-
Rise and fall with gear design, easy to adjust.
-
Up / down speed to separate regulation, improve work and efficiency.
-
Transducer group with four levels of adjustment screws, easy adjustment / accurate.
-
Pneumatic Original imported series, durable.
-
Overload protection circuit design (current, frequency), parts used goods into parts, good quality, a strong.
-
Time control using three-digit DIP switch, adjustable 1/100 seconds precision. Adjustment is simple, low failure rate.
Uses:
toys: water gun, phone, toy guns, dolls and general plastic toys,
electronics industry: plastic case, nylon strap, computer, speakers cladding, mobile phone batteries,
automotive industry: front corner lights, rear lights , look back to the mirror, etc.,
packaging industry: vanity, PVC boxes, toothpaste, etc.,
general commercial products: typewriter ribbons, cassette tapes, cassette tapes, computer disks and other materials. Technical Specifications:
Model
|
XG-2016
|
XG-2018
|
XG-2020
|
Output Power
|
1600W
|
1800W
|
2000W
|
Frequency
|
20KHz
|
20KHz
|
20KHz
|
Input Voltage
|
220V
|
220V
|
220V
|
Welding head stroke
|
80MM
|
80MM
|
80MM
|
Vibration head cooling system
|
Air
|
Air
|
Air
|
Output time
|
0.01-9.9S
|
0.01-9.9S
|
0.01-9.9S
|
Atmospheric pressure
|
Pressure range 1-7BAR
|
Welding area (MM)
|
150mm/mm
|
170mm/mm
|
190mm/mm
|
Net weight
|
115kg
|
120kg
|
125kg
|
|
